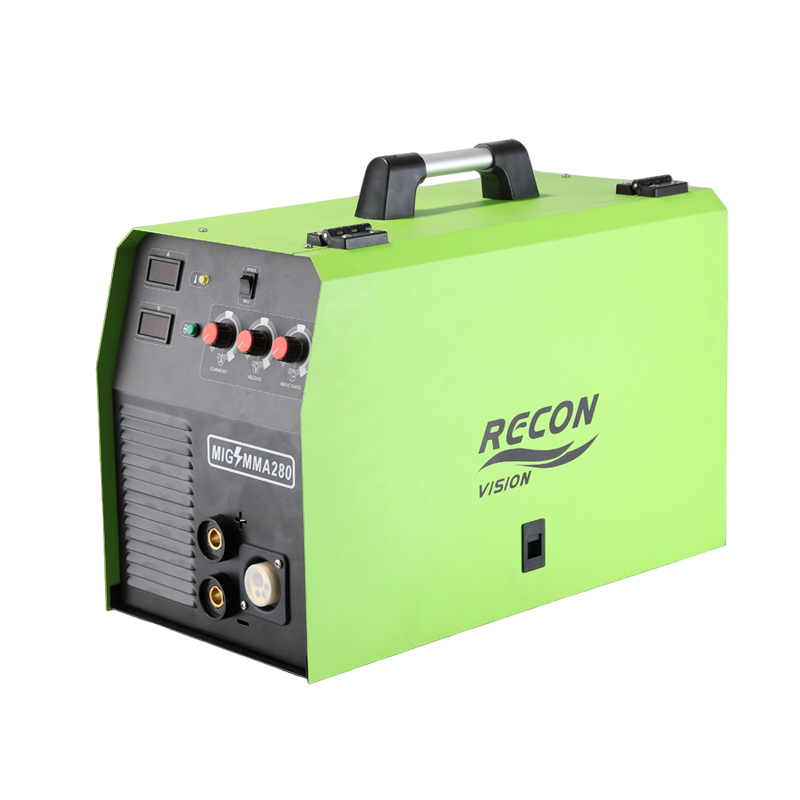

MIG-140/160/180/200/250A, 5KGWIRE, GAS/GASLESS, MIG/MAG/MMA/LIFTTIG FOUR PROCESSES


Availability:

Inquire

★ Powerful Welding Capability: With advanced IGBT inverter technology, this welder is capable of welding a variety of metals, including mild steel, stainless steel, cast iron, and more.
• ★ Professional Safety Certification: This welding machine has various European CE/REACH/LVD/EMC standards and Rohs. It also features built-in anti-stick, hot start, and excellent arc stability.
• ★ Portable and Convenient: With a compact design and easy-carry handle, this welder is perfect for use anywhere you need it. It's also energy-efficient, reducing damage to copper and iron and increasing welding frequency.
• ★ Versatile Welding Options: This MIG welder is suitable for welding a variety of metal materials, including stainless steel, mild steel, aluminum, and more.
• ★ Easy to Use: With a digital display LCD and included electrode holder, work clamp,this welder is easy to set up and use for all your welding needs.

Product Description

ITEM	MIG-120	MIG-140	MIG-160	MIG-180	MIG-200
INPUT POWER VOLTAGE (V)	220V	220V	220V	220V	220V
INPUT FREQUENCY(HZ)	50/60	50/60	50/60	50/60	50/60
RATED INPUT CAPACTY(KVA)	3.4	3.8	4.5	5.3	6.1
OUTPUT CURRENT RANGE (A)MIG	40-120	40-140	40-160	40-180	40-200
OUTPUT CURRENT RANGE (A)MMA	20-100	20-120	20-140	20-160	20-180
OUTPUT CURRENT RANGE (A)LIFT TIG	20-100	20-120	20-140	20-160	20-180
NO LOAD VOLTAGE(V)	56	58	60	60	60
RATED DUTY CYCLE (%)	40	60	60	60	60
WIRE FEED SPEED (L/MIN)	3-15	3-15	3-15	3-15	3-15
GAS FLOW (L/MIN)	15-20	15-20	15-20	15-20	15-20
DIMENSION (MM)	335220260	475215350	475215350	475215350	475215350
WEIGHT (KG)	7.8	8.2	8.5	9	9.3
