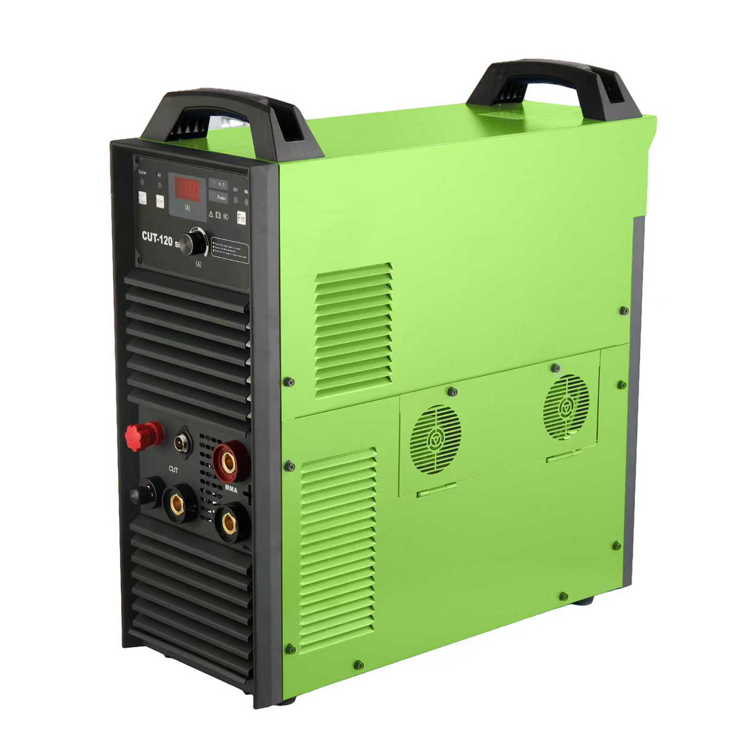

PLASMA LGK-100SIC/LGK-120SIC/LGK-160SIC WITH BUILT-IN AIR PUMP

loading

PLASMA LGK-100SIC/LGK-120SIC/LGK-160SIC WITH BUILT-IN AIR PUMP PLASMA LGK-100SIC/LGK-120SIC/LGK-160SIC WITH BUILT-IN AIR PUMP

PLASMA LGK-100SIC/LGK-120SIC/LGK-160SIC WITH BUILT-IN AIR PUMP

Availability:
Inquire

★ Silicon carbide(SIC) technology, high efficiency, energy, durable;
• ★ Small volume, light weight, Single handle design,moveable;
• ★ Duty cycle 100%, suitable for generator;
• ★ Arc force (0-100A), Hot start (0-100A),VRD control;
• ★ Electric reactor inside, Adapt to different special welding environment, can be used for acidic and alkaline electrodes;
• ★ It can be applied to the 100 meters welding.
Product Description
ITEM

LGK-100SIC

LGK-120SICLGK-160SIC
RATED INPUT VOLTAGE/FREQUENCY

220V/380V 50Hz

220V/380V 50Hz

220V/380V 50Hz
RATED INPUT CAPACITY(KVA)7.5/10.514.122.4
RATED INPUT CURRENT(A)33/1621.434
OUTPUT NO-LOAD VOLTAGE310310315
CUTTING CURRRNT RANGE20-100
25-12025-160
MMA CURRRNT RANGE0-2000-2000-200
QUALITY CUTTING THICKNESS(MM)1-251-351-40

MAX CUTTING THICKNESS(MM)

405060
DUTY CYCLE100%100%100%
DIMENSION(MM)502*209*554502*209*554615*220*585
WEIGHT(KG)2829.235

* INPUT VOLTAGE OPTIONAL: 1~110V, 1~220V, 1~110/220V, 3~220V, 3~380V, 3~460V, 3~220/440V, 3~220/380/440V
