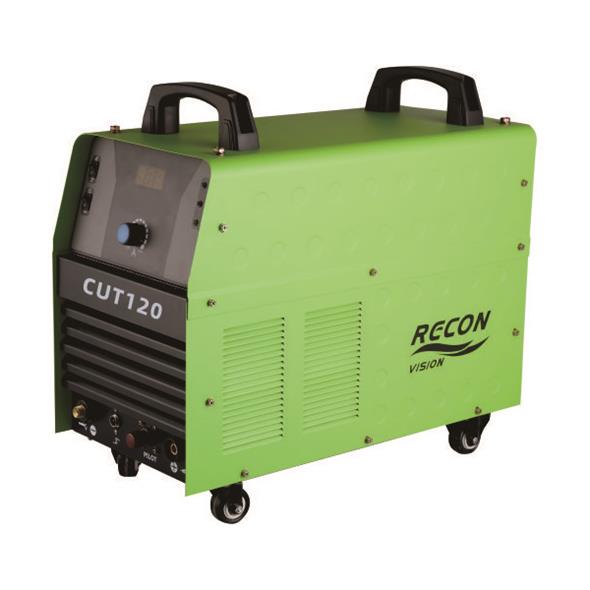

PLASMA CUT-60/80/100/120/160


Availability:

Inquire

★ PLASMA CUT：This Industrial Cutting & Welding Machine is a robust, all-in-one solution engineered for heavy-duty metal processing, catering to manufacturing plants, construction sites, and metal fabrication workshops. It integrates high-precision cutting and reliable welding functions, supporting a wide range of materials including carbon steel, stainless steel, aluminum alloy, and copper, with thicknesses from thin sheets to thick plates (up to 50mm for cutting, 30mm for welding).
• ★ Cutting Performance
Equipped with advanced plasma cutting technology (or oxy-fuel cutting, based on model), it delivers fast cutting speeds (up to 15m/min) and clean, burr-free edges. The adjustable cutting current (30-120A) and arc-stabilizing system ensure consistent results even for complex shapes, while the built-in arc voltage control automatically adapts to material thickness, reducing operator workload.
• ★ Welding Capability
For welding, it supports multiple processes such as MMA (Shielded Metal Arc Welding) and TIG (Tungsten Inert Gas Welding), with a welding current range of 20-200A. The stable DC output guarantees strong, defect-free weld joints, and features like hot start and anti-stick functions prevent electrode sticking and ensure smooth arc ignition—critical for continuous industrial operations.
• ★ Industrial-Grade Design & Safety
Built with a rugged steel chassis, it resists impact and vibration, suitable for harsh workshop environments. Key safety features include overcurrent protection, thermal overload shutdown, and voltage fluctuation resistance, ensuring long-term reliable operation. The intuitive control panel with digital display allows easy parameter adjustment, and the detachable torch (for both cutting and welding) enhances maneuverability for large workpieces.
From on-site steel structure cutting to factory batch welding of mechanical parts, this machine combines efficiency, durability, and versatility, helping streamline workflow and reduce equipment investment costs.

Product Description

ITEM	CUT-60	Plasma Cut-80	CUT-100	CUT-120	CUT-160
INPUT POWER VOLTAGE (V)	380V	380V	380V	380V	380V
INPUT FREQUENCY(HZ)	50/60	50/60	50/60	50/60	50/60
RATED INPUT CAPACTY(KVA)	7.9	8.5	15.2	19	29.5
OUTPUT CURRENT RANGE (A)	20-60	20-80	20-100	20-120	20-160
NO LOAD VOLTAGE(V)	250	260	270	270	270
RATED DUTY CYCLE (%)	60	60	60	60	60
QUALITY CUTTING THICKNESS(MM)	1-10	1-20	1-25	1-35	1-40
MAX CUTTING THICKNESS(MM)	15	25	40	50	60
ARC START	TOUCH/NON-TOUCH	TOUCH/NON-TOUCH	TOUCH/NON-TOUCH	TOUCH/NON-TOUCH	TOUCH/NON-TOUCH
AIR PRESSURE (MPA)	0.2-0.4	0.2-0.4	0.3-0.5	0.3-0.6	0.3-0.6
PROTECTION GRADE	IP21S	IP215S	IP21S	IP21S	IP21S
DIMENSION (MM)	495205355	580230410	580315570	580315570	580315570
WEIGHT (KG)	16.2	18	33	35	45
