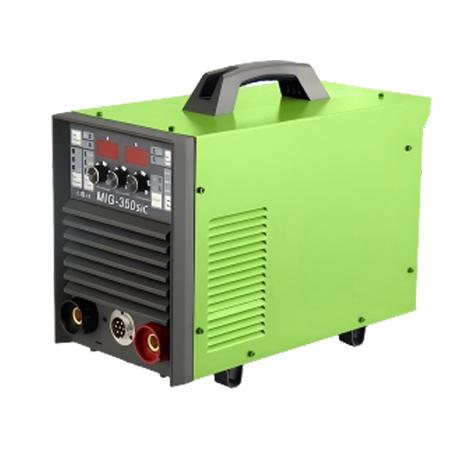

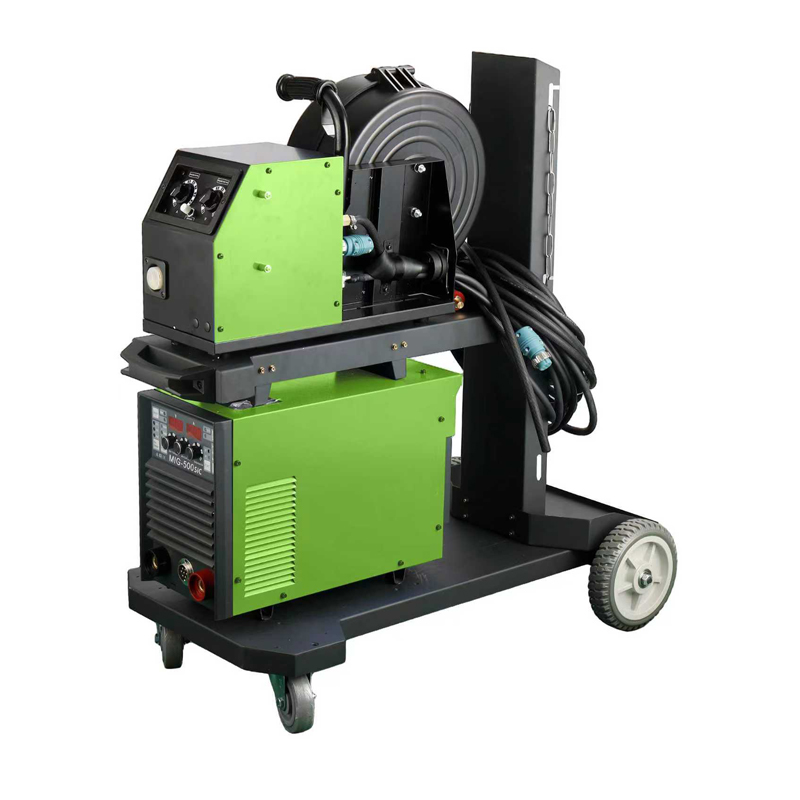

MIG-350SIC/MIG-500SIC/MIG-630SIC

loading

MIG-350SIC/MIG-500SIC/MIG-630SIC MIG-350SIC/MIG-500SIC/MIG-630SIC
MIG-350SIC/MIG-500SIC/MIG-630SIC MIG-350SIC/MIG-500SIC/MIG-630SIC

MIG-350SIC/MIG-500SIC/MIG-630SIC

Availability:
Inquire

★ Silicon carbide technology, efficiency saving and durable;
• ★ Level 1 energy consumption, Strong ability to resist power fluctuations suitable for generators;
• ★ Solid, flux-cored, and stainless- steel welding wire can all be used;
• ★ Precise current control, excellent welding characteristics, rapid dynamic response, suitable for all- position welding;
• ★ 7-core control wire interface, easy extension of the control wire and improves the welding effect;
• ★ Professional dustproof and moisture-proof design to meet the requirements of harsh environment.
Product Description
ITEM

NBC-350SIC

NBC-500SICNBC-630SIC
RATED INPUT VOLTAGE/FREQUENCY

380V±15% 50Hz

380V±15% 50Hz

380V±15% 50Hz
RATED INPUT CAPACITY(KVA)1323.532.6
RATED INPUT CURRENT(A)203550
OUTPUT NO-LOAD VOLTAGE68.57576
MIG CURRENT RANGE0-350
60-50060-630
MMA CURRENT RANGE0-3500-5000-630
DUTY CYCLE100%100%100%
WIRE DIAMETERΦ0.8-Φ1.2Φ0.8-Φ1.6Φ0.8-Φ1.6
DIMENSION (MM)467*219*366513*220*398406*255*398
WEIGHT(KG)15.32228

* INPUT VOLTAGE OPTIONAL: 1~110V, 1~220V, 1~110/220V, 3~220V, 3~380V, 3~460V, 3~220/440V, 3~220/380/440V
